Outbound API Configuration

Configure Odoo to send data to external systems automatically based on triggers and events.

Step-by-Step Configuration​

Step 1: Create Base Configuration​

  1. Navigate to Settings > Technical > BJ API > API Configurations

API Settings Menu API Configurations menu in Technical Settings

  1. Click Create

API Configuration Form New API Configuration form

  1. Set Request Type to "Out" for outbound synchronization

Outbound Configuration Select "Out" for outbound data synchronization

Step 2: Configure External API​

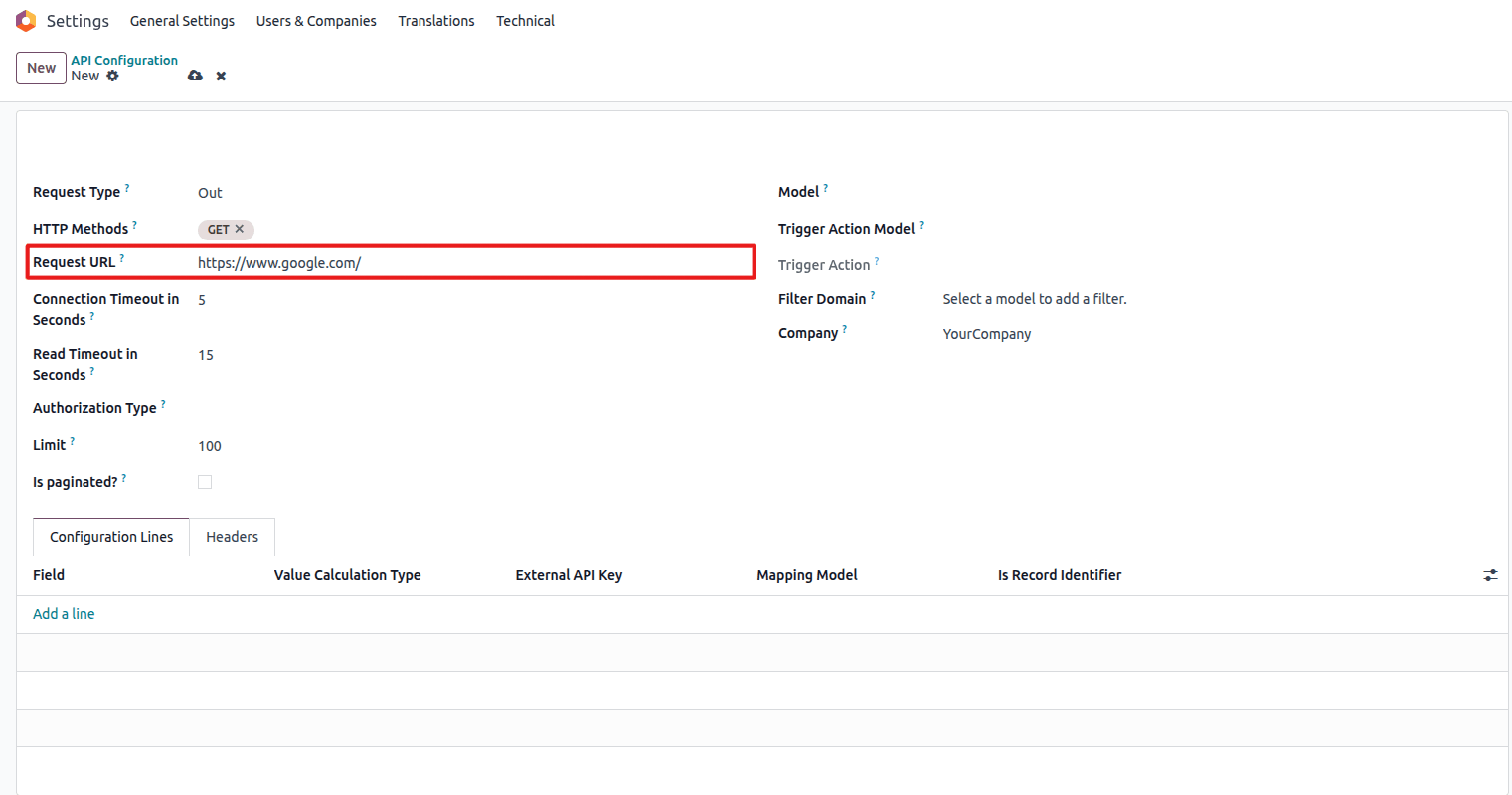

Request URL​

Request URL Configuration Configure the external API endpoint URL

Enter the complete external API endpoint:

https://api.example.com/partners

HTTP Method​

Select a single HTTP method (required for outbound):

  • GET: Query external data
  • POST: Send new data
  • PUT: Update existing data
  • DELETE: Remove data
warning

Outbound configurations require exactly one HTTP method to be selected.

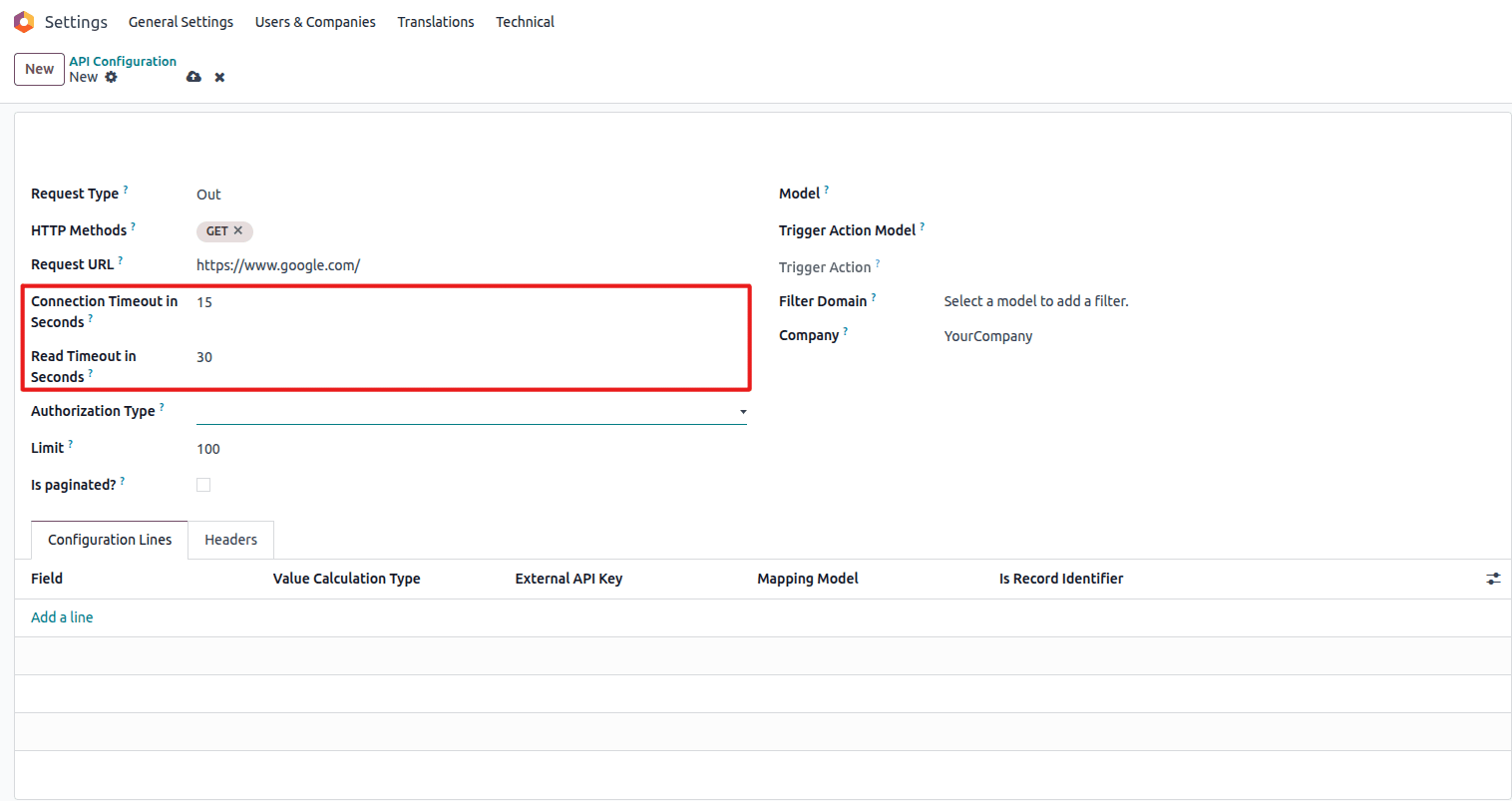

Step 3: Set Timeout Parameters​

Configure timeouts to prevent hanging requests:

Timeout Settings Timeout configuration

  • Connection Timeout: Maximum time to establish connection (default: 5 seconds)
  • Read Timeout: Maximum time to wait for response (default: 15 seconds)

Example configuration:

Connection Timeout: 10  # seconds
Read Timeout: 30        # seconds

Step 4: Configure Authentication​

Basic Authentication​

Basic Authentication Basic Authentication configuration

Authorization Type: Basic Auth
Login: api_user
Password: secure_password

Generated header:

Authorization: Basic dXNlcjpwYXNz

Bearer Token​

Bearer Token Authentication Bearer Token configuration

Authorization Type: Bearer Token
Bearer Token: sk_live_abc123xyz789

Generated header:

Authorization: Bearer sk_live_abc123xyz789

Step 5: Define Source Model and Filters​

Model Settings Model and filter configuration

Model Selection​

Choose the Odoo model to synchronize:

  • res.partner - Contacts
  • product.product - Products
  • sale.order - Sales Orders
  • account.move - Invoices

Filter Domain​

Apply conditions to select specific records:

# Only sync active customers
[('active', '=', True), ('customer_rank', '>', 0)]

# Sync orders from last 7 days
[('create_date', '>=', (datetime.now() - timedelta(days=7)).strftime('%Y-%m-%d'))]

Step 6: Create Field Mappings​

Field Mapping Configuration Configure field mappings

Map Odoo fields to external API structure:

Odoo FieldExternal API KeyValue TypeNotes
namefull_namePlainCustomer name
emailemail_addressPlainEmail field
phonecontact_numberPlainPhone number
idexternal_idPlainUnique identifier
partner_id.namecompany_nameRelationalCompany reference

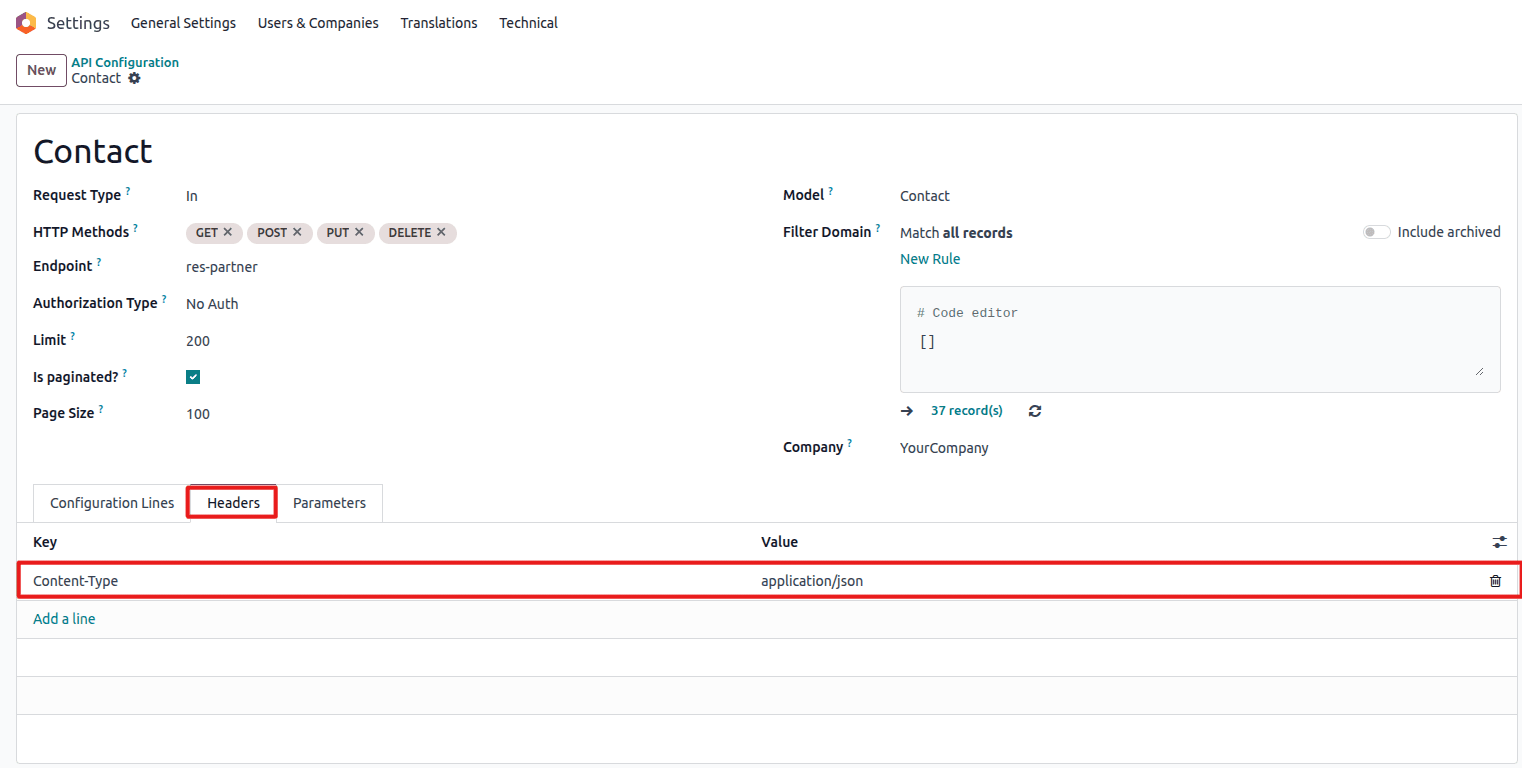

Step 7: Add Custom Headers​

Headers Configuration Configure custom HTTP headers

Configure additional HTTP headers:

# Headers Tab
Content-Type: application/json
X-API-Version: 2.0
X-Client-Id: odoo-integration

Step 8: Configure Automation Triggers​

Manual Execution​

Call the method directly in server actions:

record = self.env['res.partner'].browse(partner_id)
config = self.env.ref('module.api_config_xml_id')
config._make_outbound_http_request(record, config.id, timeout=60)

Cron Jobs​

Schedule automated synchronization

Schedule regular synchronization:

  1. Create a Scheduled Action
  2. Set the model to bj.api.sync.config
  3. Configure the Python code:
# Sync all modified partners every hour
partners = env['res.partner'].search([
    ('write_date', '>=', datetime.now() - timedelta(hours=1))
])
config = env.ref('module.outbound_partner_config')
for partner in partners:
    config._make_outbound_http_request(partner, config.id)

Base Automation​

Trigger on record events:

  1. Create an Automated Action
  2. Set the model (e.g., res.partner)
  3. Choose trigger: On Creation, On Update, On Deletion
  4. Add server action to call the API

Outbound Request Flow​

Trigger Event → Record Selection → Field Mapping → HTTP Request Construction
→ External API Call → Response Processing → Logging

Example Configurations​

Example 1: Send New Customers to CRM​

Name: Customer to CRM Sync
Request Type: Out
Model: res.partner
HTTP Method: POST
Request URL: https://crm.example.com/api/customers
Filter Domain: [('customer_rank', '>', 0)]

Example 2: Update Product Inventory​

Name: Inventory Update
Request Type: Out
Model: product.product
HTTP Method: PUT
Request URL: https://inventory.system.com/api/products
Filter Domain: [('type', '=', 'product')]

Example 3: Delete Cancelled Orders​

Name: Remove Cancelled Orders
Request Type: Out
Model: sale.order
HTTP Method: DELETE
Request URL: https://orders.api.com/remove
Filter Domain: [('state', '=', 'cancel')]

Batch Processing​

For large datasets, configure batch processing:

# Pagination Settings
Is Paginated: ✓
Page Size: 100

This sends records in batches of 100 to optimize performance.

Error Handling​

The module provides automatic error handling:

  • Automatic Retry: Failed requests are retried with exponential backoff
  • Detailed Logging: All errors logged in bj.api.log
  • Graceful Degradation: Partial failures don't block the system
  • Status Code Handling: Different handling based on HTTP status

Performance Optimization​

  1. Use appropriate batch sizes (50-200 records)
  2. Apply efficient domain filters to reduce dataset size
  3. Monitor API rate limits to avoid throttling
  4. Cache frequently accessed data when possible
  5. Use connection pooling for high-volume synchronization

Testing Your Configuration​

  1. Create a test record in your Odoo model
  2. Manually trigger the synchronization
  3. Check the logs in BJ API > Logs
  4. Verify the external system received the data
  5. Test error scenarios (wrong URL, invalid auth)
